FL-80

This open ended filter has auto flush out feature enabling self cleaning, with unique working principle. FL-80 is suitable for upto 120 sq.m rooftop area.

Suitable for AreaUpto 120 SQMTRS
Intensity of Rainfall5 mm/Hour to 75 mm/Hour
Filter TypeOpen ended, Non-clog
Working PrincipleCohesive Force & Centrifugal Force
Operating Pressure > 1 foot of Gravity Head (0.060kg/cm2)
Max Discharge at (CWO)120 Liters per minute
Filter ElementSS-304 Multi-Surface Screen - Food Grade
Mesh Size250 Microns
Inlet Size90 MM
Clean Water Outlet size (CWO)63 MM
Drain Outlet size90 MM
Filter HousingUV Stabilized - HDPE
Filter EfficiencyAbove 90%*
Source of PowerGravity

FL-150

This open ended filter has auto flush out feature enabling self cleaning with unique working principle. FL-150 is suitable for 120 to 180 sq.m rooftop area.

Suitable for AreaUpto 180 SQMTRS
Intensity of Rainfall5 mm/Hour to 75 mm/Hour
Filter TypeOpen ended, Non-clog
Working PrincipleCohesive Force & Centrifugal Force
Operating Pressure> 1 foot of Gravity Head (0.060kg/cm2)
Max Discharge at (CWO)180 Liters per minute
Filter ElementSS-304 Multi-Surface Screen - Food Grade
Mesh Size250 Microns
Inlet size90 MM
Clean Water Outlet size (CWO)75 MM
Drain Outlet size90 MM
Filter HousingUV Stabilized - HDPE
Filter EfficiencyAbove 90%*
Source of PowerGravity

FL-200

This open ended filter has auto flush out feature enabling self cleaning with unique working principle. FL-200 is suitable for 180 to 225 sq.m rooftop area.

Suitable for Area Upto 225 SQMTRS
Intensity of Rainfall5mm/Hour to 75 mm/Hour
Filter TypeOpen ended, Non-clog
Working PrincipleCohesive Force & Centrifugal Force
Operating Pressure> 1 foot of Gravity Head (0.060kg/cm2)
Max Discharge at (CWO)225 Liters per minute
Filter ElementSS-304 Multi-Surface Screen -Food Grade
Mesh Size250 Microns
Inlet size110 MM
Clean Water Outlet size (CWO)75 MM
Drain Outlet size90 MM
Filter HousingUV Stabilized - HDPE
Filter EfficiencyAbove 90%*
Source of PowerGravity

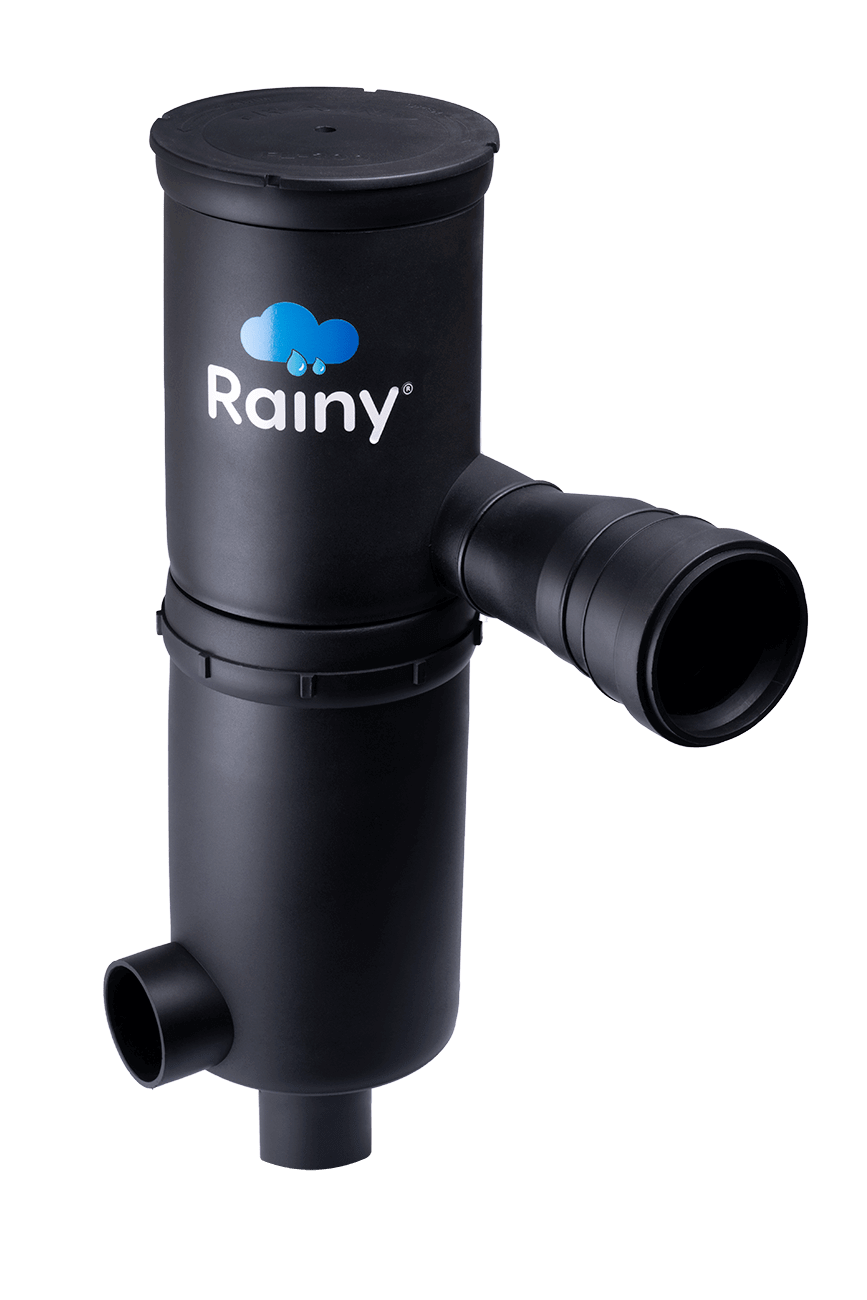

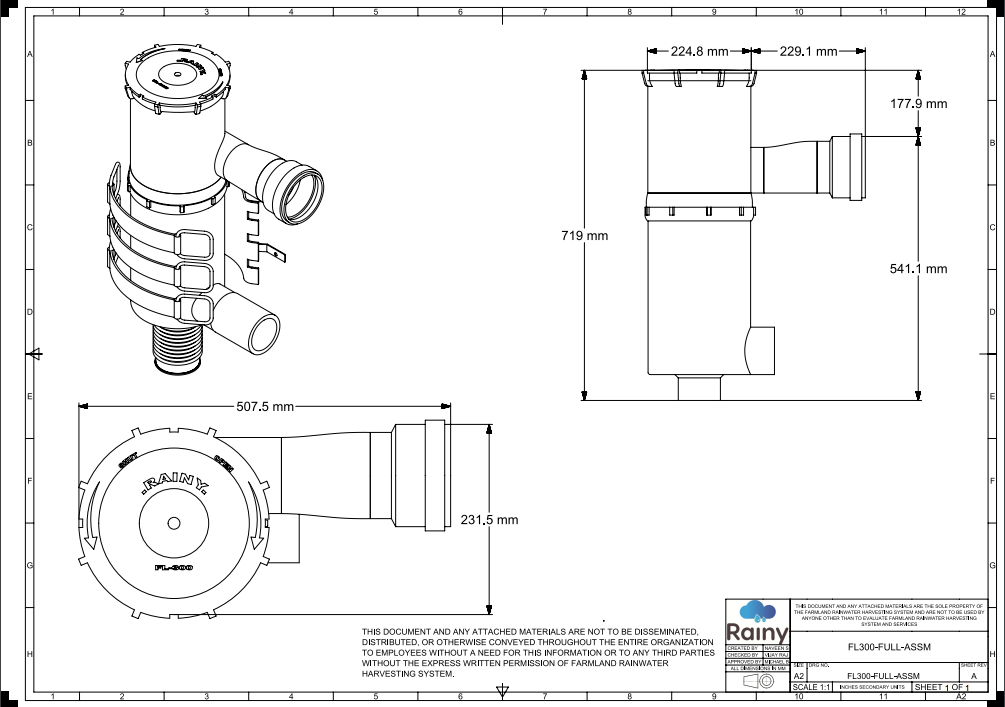

FL-300

This open ended filter has auto flush out feature enabling self cleaning with unique working principle. FL-300 is suitable for 225 to 350 sq.m rooftop area.

Suitable for Area Upto 350 SQMTRS
Intensity of Rainfall5 mm/Hour to 75 mm/Hour
Filter TypeOpen ended, Non-clog
Working PrincipleCohesive Force & Centrifugal Force
Operating Pressure> 1 foot of Gravity Head (0.060kg/cm2)
Max Discharge at (CWO)340 Liters per minute
Filter ElementSS-304 Multi-Surface Screen - Food Grade
Mesh Size250 Microns
Inlet size110 MM
Clean Water Outlet size (CWO)110 MM
Drain Outlet size90 MM
Filter HousingUV Stabilized - HDPE
Filter EfficiencyAbove 90%*
Source of PowerGravity

FL-500

This open ended filter has auto flush out feature enabling self cleaning with unique working principle. FL-500 is suitable for 350 to 500 sq.m rooftop area.

Suitable for Area Upto 500 SQMTRS
Intensity of Rainfall5 mm/Hour to 75 mm/Hour
Filter TypeOpen ended, Non-clog
Working PrincipleCohesive Force & Centrifugal force
Operating Pressure> 1 foot of Gravity Head (0.060kg/cm2)
Max Discharge at (CWO)480 Liters per minute
Filter ElementSS-304 Multi-Surface Screen - Food Grade
Mesh Size250 Microns
Inlet size110 MM
Clean Water Outlet size (CWO)110 MM
Drain Outlet size110 MM
Filter HousingUV Stabilized - HDPE
Filter EfficiencyAbove 90%*
Source of PowerGravity
